380v Three Phase Roll To Roll Vacuum Coating Machine For Flexible Materials

Place of Origin : Guangdong

MOQ : 1

Brand Name : Lion King

Certification : CE

Delivery Time : 20

Coating Uniformity : ±1%

Coating Thickness : 0.1-1mm

Coating Monitoring System : Real-time

Coating Pressure : Vacuum

Coating Method : Roll to Roll

Coating Temperature : Adjustable

Coating Speed : Up to 100m/min

Coating Control System : PLC

Coating Type : Vacuum

Coating Size : Customizable

Application : Coating

Coating Environment : Controlled

Voltage : 380v three phase 50-60HZ

Dimension : 25000mm*2500mm*1500mm

Drying Method : Hot Air, Infrared, UV

Model : JZ-1800#

Substrate Material : Film, Paper, Fabric

Power Supply : AC 380V, 50Hz

Power : 18KW*3

Coating Material : Liquid, Paste, Powder

Working Speed : 15-20m/min

Number Of Machines : 1

Colour Mode : white and yellow

Condition : New

Painting Speed : 15-25m/min

Unwinding Method : Single Station, Double Station

Working Width : 1800mm

Heating Method : Electric, Gas, Steam

Rewinding Method : Single Station, Double Station

Warranty : 1 year

After-Sales Service : Engineers available to service machinery overseas

Contact Now

EW Series models are deposition systems for evaporation of metal or oxides onto continuously-wound plastic film, paper or metal foil. Models range from compact types for research, to systems for mass-production. They can be used to manufacture products such as packaging materials, capacitors and magnetic tape.

Features


● Raw film: PET OPPBOPPPVC and other high molecular plastic film etc.
● Metallization method Hi-frequency heating, able to realize pinhole free
metallization.Resistance heating, able to gain low cost metallization.
● Winding system : Adopt digital control method to safeguard each driven motor
simultaneous running, meanwhile has high accuracy,
excellent repeatability tension control system.
● Film thickness : Adopt multiple point on-line test and transmission
film thickness control system.
● Film thickness distribution: Film thickness uniformity is
good tolerance is below ±7%.
● Pre-treatment system : Adopt plasma cleaning system and heating system to
perform pre- treatment of raw material, ensuring high quality film metallization.
● Vacuum Exhaust System Fully imported pump set + import POLYCOLD
imported/domestic pump set combination+import
POLYCOLD Fully domestic pump set + import POLYCOLD.

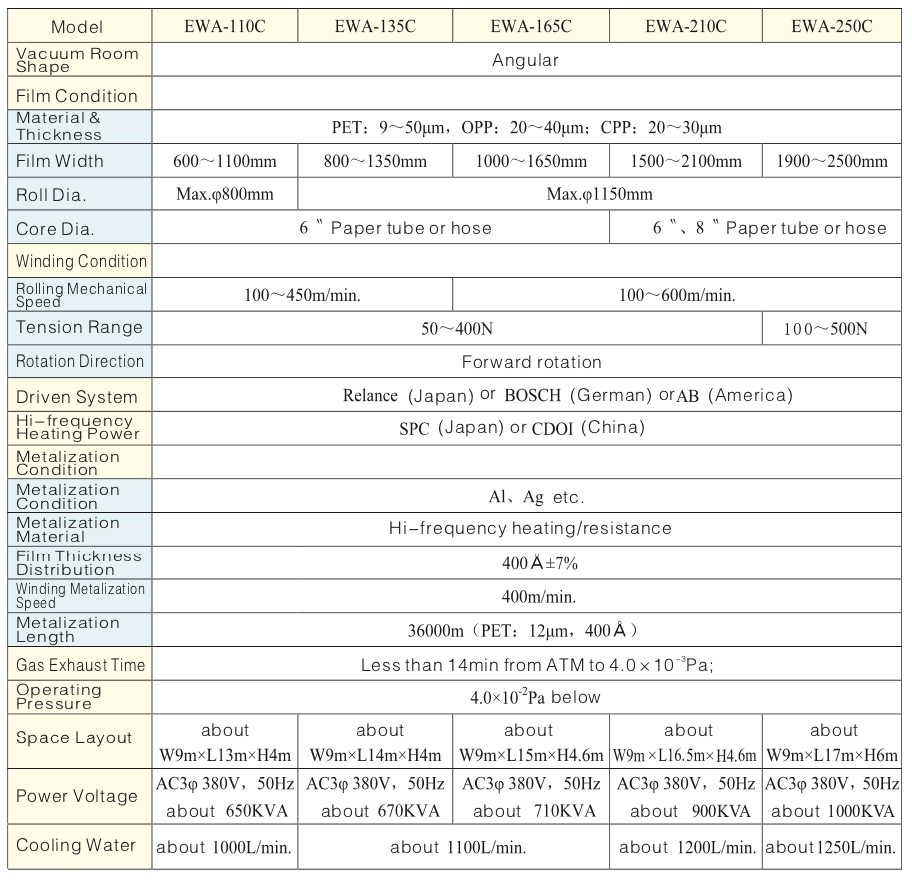

Specifications

380v Three Phase Roll To Roll Vacuum Coating Machine For Flexible Materials
